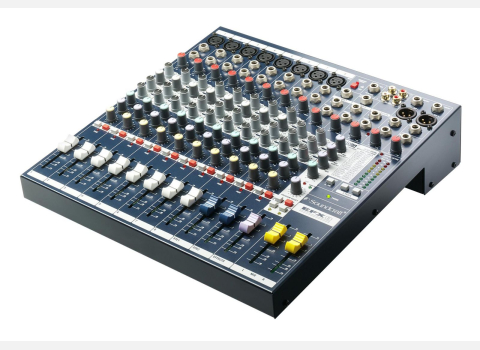

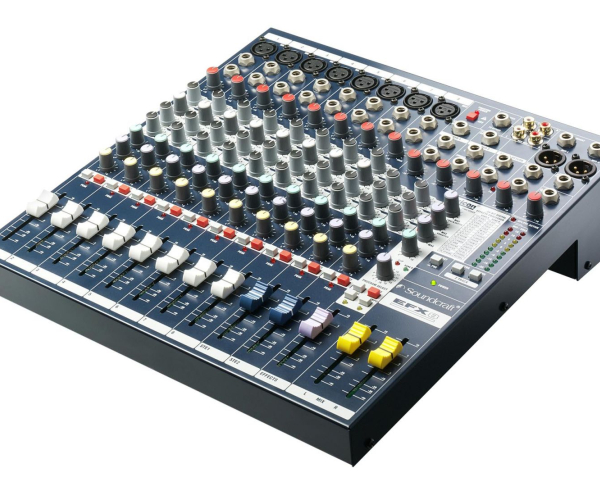

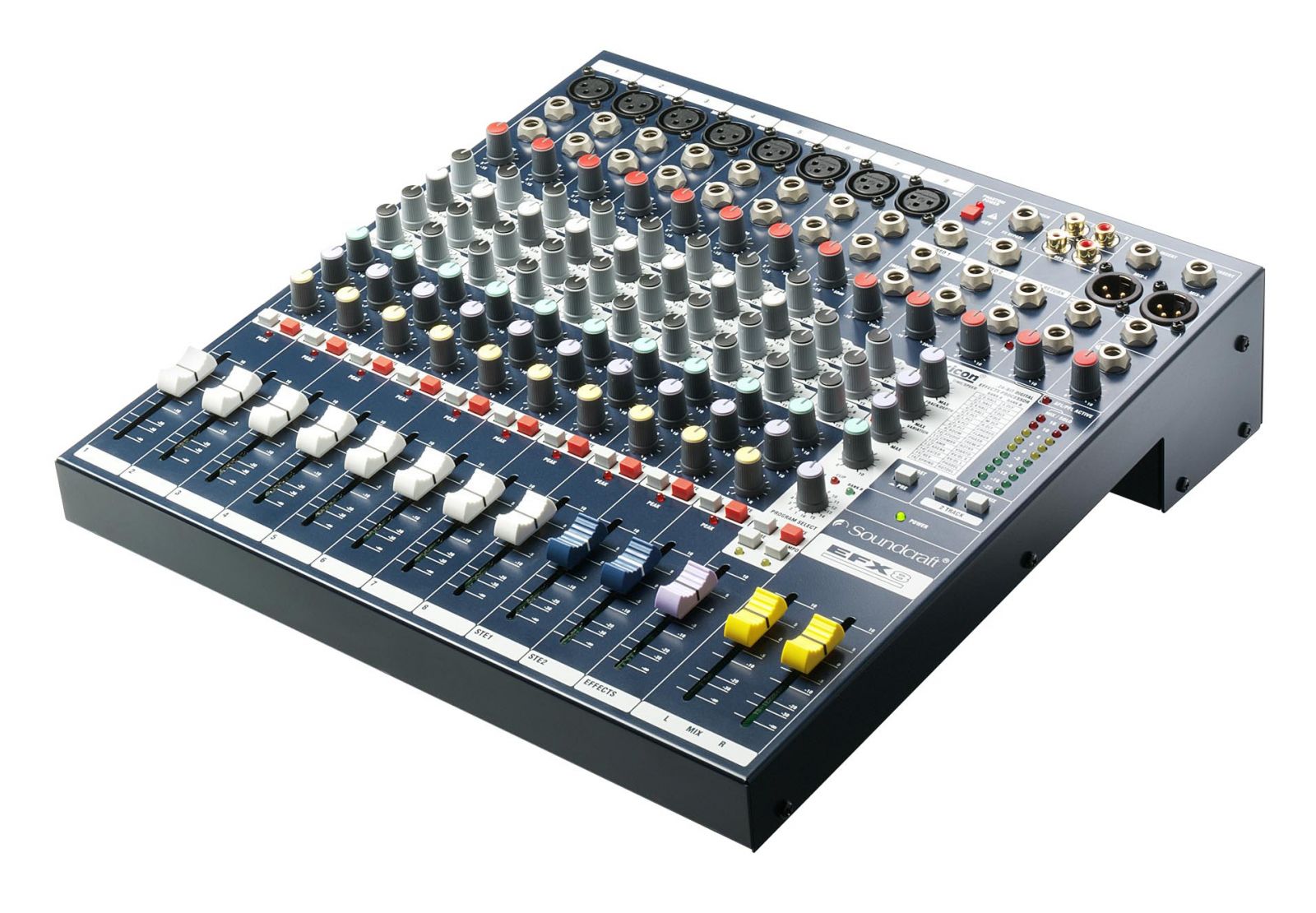

Bàn Trộn âm thanh SOUNDCRAFT EFX8

Thông số kỹ thuật bàn trộn âm thanh SOUNDCRAFT EFX8

• Loại: Mixer Analog
• Kênh: 10 (8 Mono, 2 Stereo)
• Inputs – Mic Preamps : 8 x XLR (CH 1-12)
• Inputs – Line : 8 x 1/4″ (CH 1-12), 4 x 1/4″ (Stereo 1, 2), 2 x RCA (2 TRK)
• Inputs – Other : No Other Inputs
• Outputs – Main : 2 x XLR, 1 x 1/4″ (Mono)
• Outputs – Direct : No Direct Outputs
• Outputs – Other : 2 x RCA (Rec), 2 x 1/4″ (Monitor)
• Headphones : 1 x 1/4″
• Send/Return I/O : 1 x 1/4″ (Aux), 1 x 1/4″ (FX), 2 x 1/4″ (Return)
• Phantom Power : Yes (CH 1-8)
• EQ Bands : 3-band Sweepable Mid (CH 1-12), 3-band (Stereo 1-2)
• Aux Sends : 1 x Aux 1 (Pre/Post), 1 x FX (Post)
• Busses/Groups : No Bus or Group
• Faders : 13 x 60mm
• Channel Inserts : Yes (CH 1-8), 2 x 1/4″ (Main Inserts)
• Effects : Yes
• Talkback : No Talkback
• Computer Connectivity : No Computer Connectivity
• Rackmountable : Yes
• Kích thước (Cao x Sâu x Rộng): 91mm x 363mm x 330mm
• Trọng lượng: 4.58kg.
